Design
The pump design is multistage construction with verticle split casing & intermediates, allowing for high head discharge. It is a horizontal pump with a stage tie attached with suction & discharge brackets through rods. The pump base is cast integral with suction and discharge brackets.
Bearing
Heavy-duty ball bearings that are capable of carrying thrust load in either direction are used in pump design. In addition, grease-lubricated bearings are used, which ensure a longer life for the pumps.
Flanges
All the flanges are faced and drilled as per DIN standards.
Impeller
Impeller has axial thrust balancing and is die-casting with a very smooth finish to provide the highest efficiency level. In addition, impellers can be made out of any material depending on the customer’s process requirement.
Stuffing Box
Un-cooled soft-packing are provided with a sealing connection on the suction side of the pump. For higher pumped media temperatures, a stuffing box can be provided with a cooling cover which facilitates external cooling.
Drive
The pump is designed to drive by an electric motor through flexible coupling. The direction of rotations is perceived as clockwise when viewed from the driver’s end. As a result, suction is nearer to coupling and discharge at the other end.
Features
Designed For High-Pressure Industrial Applications
It Comes With The Option Of Cooling Cover Stuffing Box
Robust Pump Construction For Stable Operations Even At High Pressure
Can Handle Water And Liquids At High Temperature
Impeller Material Can Be Varied To Suit Customer Applications
Proves To Be Very Economical And Efficient For High-Pressure Applications

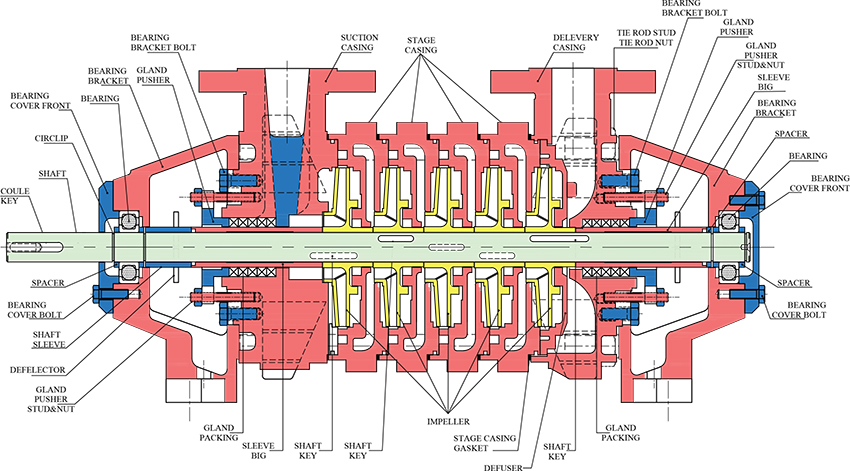

Material Specifications
