Applications

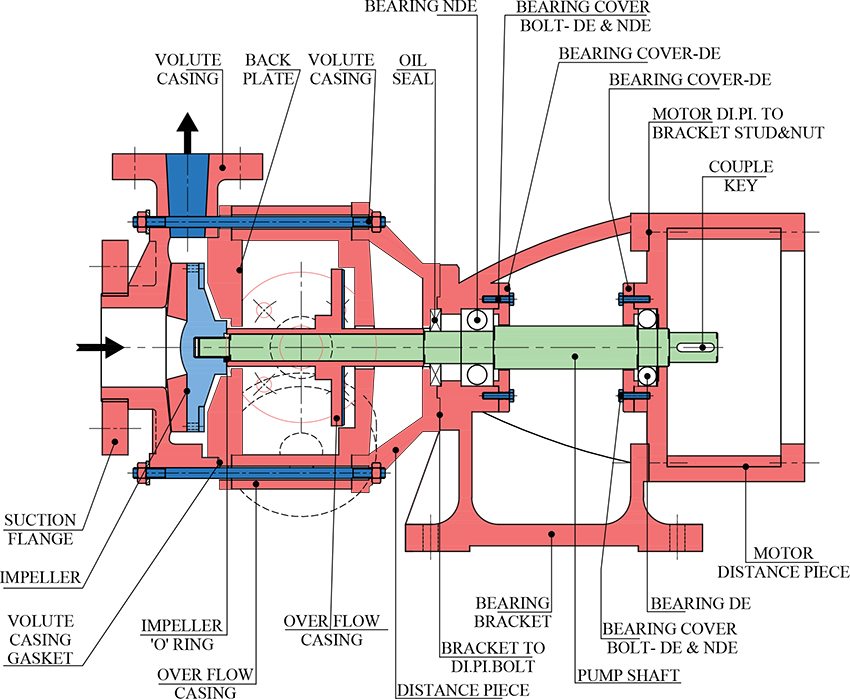

Expeller
Solid injection moulded polypropylene prevents liquid from going further up which channelizes it through the outlet of the overflow chamber.
Volute Casing
Top centerline discharge, self venting volute casing formed out injection moulded polypropylene.
Bearing Frame
Made from heavy cast iron which is built to accommodate vertical flange type motor & for a wall hung installation.
Shaft
Made from En Steel, these shafts are protected with a polypropylene sleeve which does not come in contact with process media.
Backplate
Made with thick walled solid injection moulded polypropylene.
Impeller
All impellers are precision moulded, light in weight, a semi open construction with large, contoured flow passages for maximum handling of the liquid.
Ball Bearing
The single and double row ball bearing is shouldered & locked on a shaft with locknuts and washer, and in bearing housing which can carry radially and any unbalanced thrust load.
Overflow Chamber
Large injection moulded a polypropylene chamber guide’s excess liquid back to the sump eliminating the need for a shaft seal.
Features
No. 1 Product For Effluent Treatment Plants Since There Are No Mechanical Seals/Glands
Can Run Dry Due To Absence Of Shaft Seals
Built With Few Parts Which Makes It Easy To Maintain

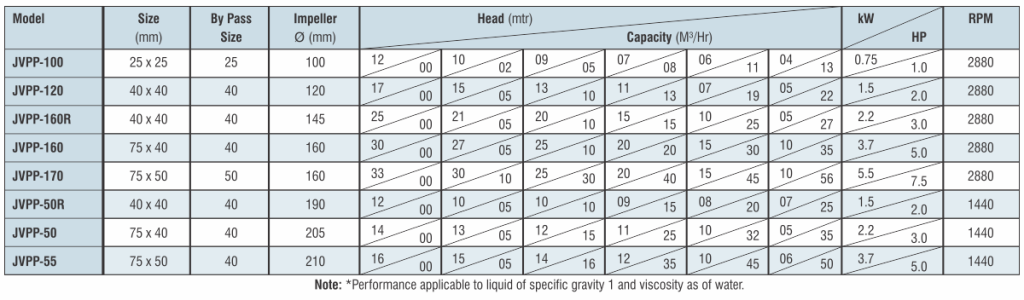

Material Specifications
