Design
Self venting, top centerline discharge, no air locking, back pullouts, simplifies maintenance without disturbing pipe connections.
Impeller
A semi open impeller with non clogging technology which handles light slurries without a problem. Dynamic and balanced impeller, less noise, less vibration.
Stuffing Box
Provide with a gland packing or mechanical seal. (High quality mechanical rotary seal for leak proof long life operation) on request.
M.O.C.
C.I., C.S., SS-304/ 304 L, SS-316/316L, Bronze, Alloy-20, CD4MCU, etc…
Features
Can Withstand Wide Voltage Fluctuations. From 180 To 240 Volts For Single Phase And From 300 To 440 Volts For Three Phase
As Efficient As Internationally Available Pumps
Quick Automatic Self Priming Action
Designed For Automatic Air Release
Non Clogging Impellers To Handle Suspended Solids
Repairs Possible Without Disturbing The Pipe Connections Due To Back Pull Out Design
No Need For Foot Valve
Replaceable Wearing Parts
Dynamically Balanced Rotating Parts That Ensure Minimum Vibrations
Easy Maintenance

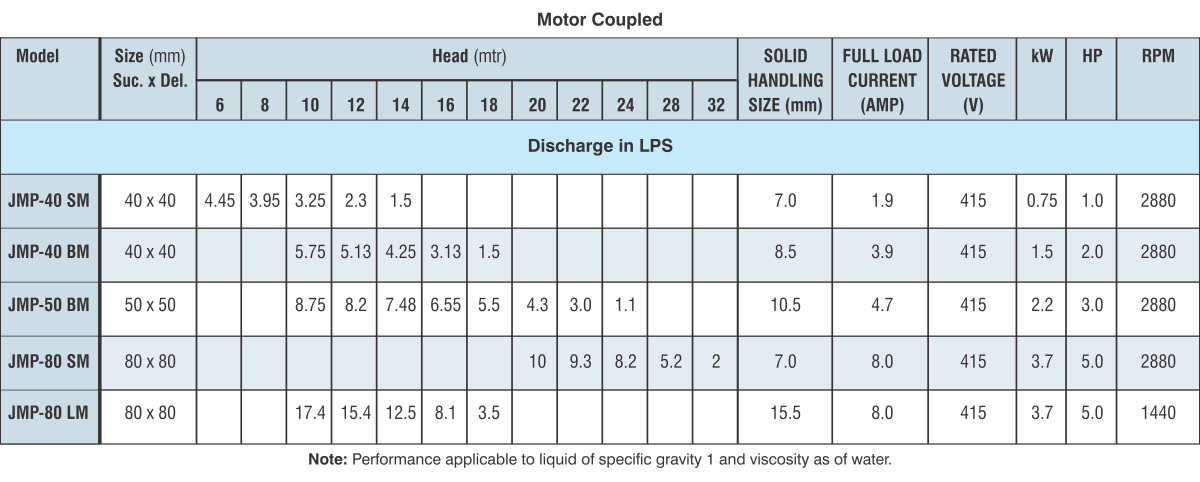

Material Specifications
