Design
Self venting, top centerline discharge, no air locking, back pullouts, simplifies maintenance without disturbing pipe connections.
Stuffing Box
Provide with a gland packing or mechanical seal. (High quality mechanical rotary seal for leak proof long life operation) on request.
Impeller
A semi open impeller with non clogging technology which handles light slurries without a problem. Dynamic and balanced impeller, less noise, less vibration.
M.O.C.
C.I., C.S., SS-304/ 304 L, SS-316/316L, Bronze, Alloy-20, CD4MCU, etc…
Features
Smaller Volume Using Less Floor Space.
Grease/Oil Lubricant Bearing
Temp. Up To 120*C
Suitable Wih V-Belt Drive Or Direct Coupled With A Motor
Heavy Duty Shaft, Sturdy Construction, Simple Design, Back Pull Out Design.
Micro Metric Wears Adjustable Facility Which Works At Constant Head For A Longer Period.
Non-Clogging And Handles Solids Up To 10 Mm.

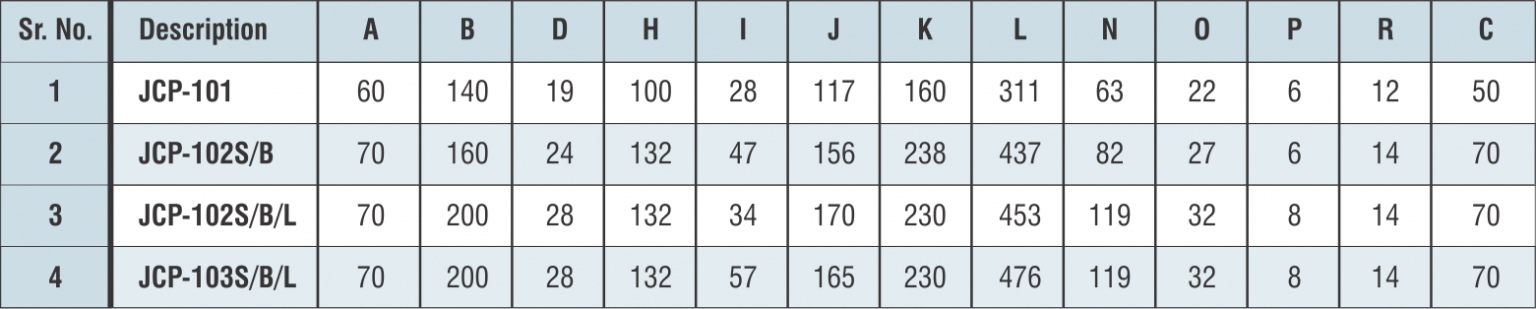

Material Specifications
