Applications
Casing, Impeller, Back Plate
PP/ GRP/ UHMWPE/ PVDF
Bearings
Double Ball Bearing
Shaft
SS/ EN 9
Bearing Bracket
C.I. GRFG – 26
Shaft Sleeve
GRP/ Ceramic/ ALLOY-20/ Hast Alloy B/C
Features
Suitable For Extremely Corrosive Duties
Suitable For Continuous Service
Self Venting Type Casing
Dynamically And Hydraulically Balanced Impeller With Aerodynamic Profile Vanes
Pump Casing Installed With External Metal Ring For Construction Stability
Temp. Range Up To 120*C

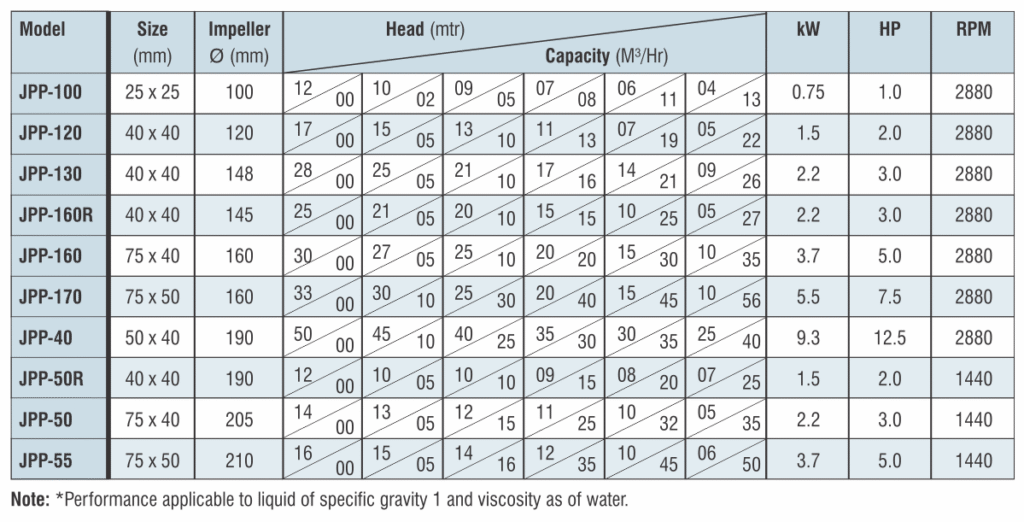

Material Specifications
