Applications

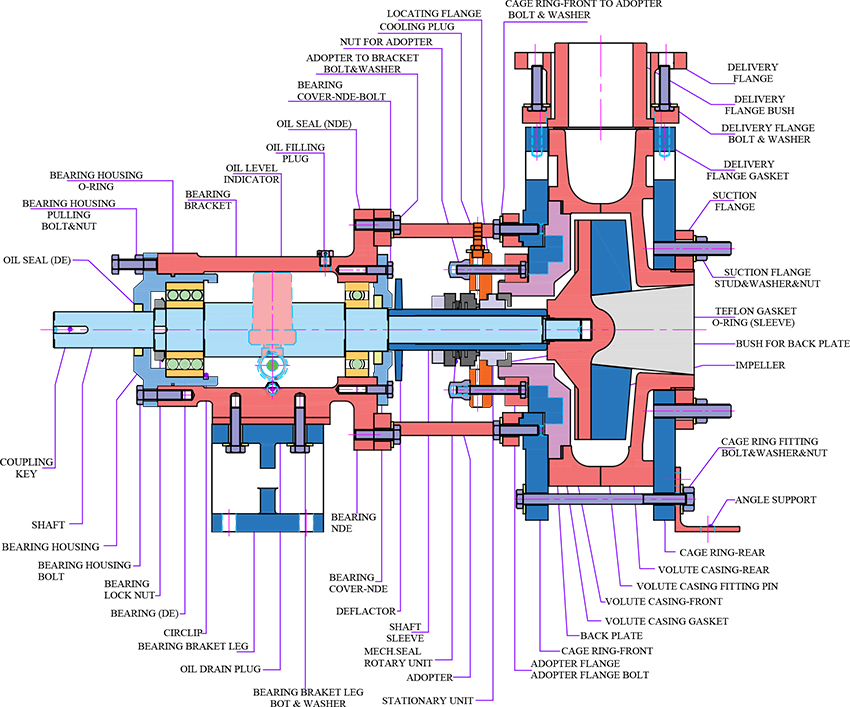

Volute Casing
Top centerline discharge, self venting volute casing which is formed out of injection moulded polypropylene
Sleeve
Shaft sleeve of different material depending on the compatibility of the liquid to be handled
Ball Bearings
Inboard bearing is pressed on shaft and free to float axially in frame – carries radial load only. Outboard double row ball bearing is shouldered and locked on shaft with lock-nut and washer, and in bearing housing to carry radial and any unbalanced thrust load. All bearing fits are precision bored.
Mechanical Seal / Gland Packing
Pumps are fitted with either mechanical seal or gland packing depending on the conditions of service.
Bearing Frame
Constructed from Heavy Cast Iron and precisely designed for no shaft deflection of more than 0.05 mm, and contains large oil reservoir
Backplate
Made of thick-walled solid injection and moulded polypropylene
Shaft
Designed for maximum 0.05 mm deflection at mechanical seal. Available in EN / Stainless steel.
Adopter
Facilities maintenance without disturbing Bearing Block and Shaft
Impeller
All impellers are precision moulded, light in weight, semi-open construction with large, contoured flow passages for maximum handling of the liquid
Cage Ring
Lends good mechanical strength to the casing in line with JEE’s design philosophy
Features
Designed To Suit Extremely Corrosive Duties In The Process And Chemcial Industries
Suitable For Continuous Service
Self Venting Type Casing
Large Capacity Transfer Pumps
Dynamically And Hydraulically Balanced Impeller With Aerodynamic Profile Vanes
Ideal For Bulk Transfer Of Acidic Effluents For Big Process Plants
Pump Casing Is Provided With An External Metal Ring For Construction Stability
Temp Range Upto 120*C
Material Specifications
